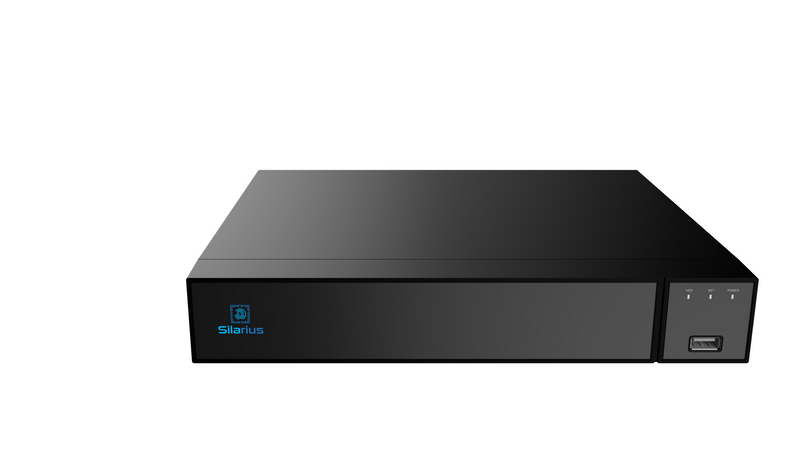

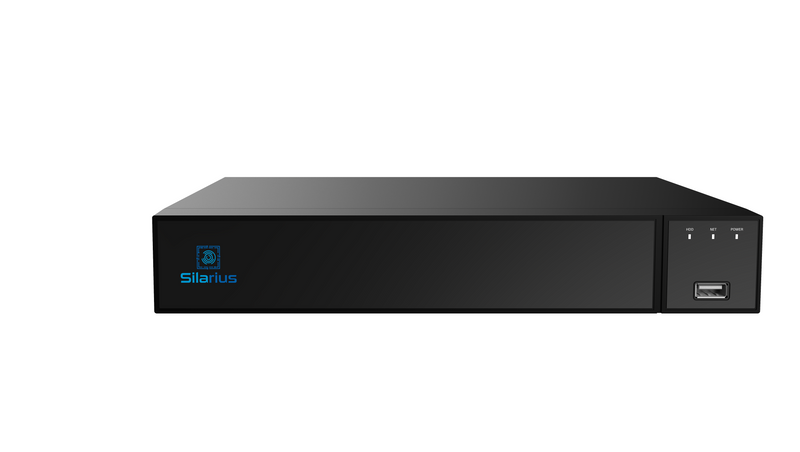

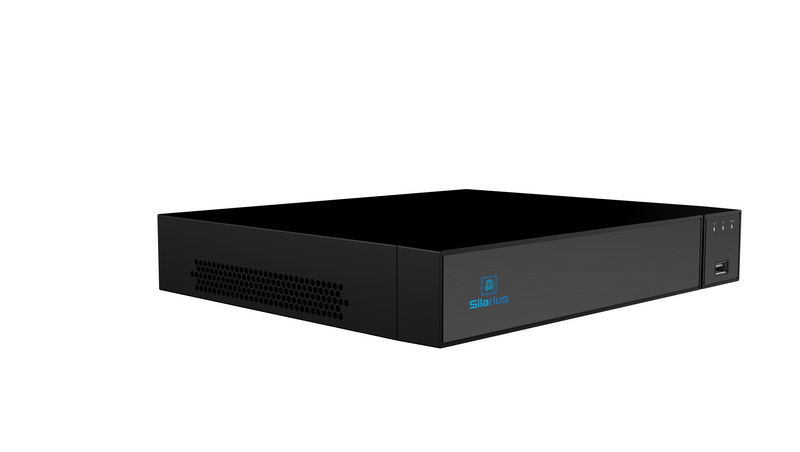

4K NVR 9CH total

Name: SIL-NVR9CH4 4K NVR 9CH total, 4TB HDD
Brand: Silarius
SKU: SIL-NVR9CH4
Price: 239.99 USD
Availability: InStock

$239.99

Hard drive

No HDD$149.99 2TB$199.99 4TB$239.99 6TB$279.99 8TB$339.99

Free shipping
3-year Silarius warranty
US-based support team

Buying in volume or for several sites? Get project pricing.

Complete your setup

Everything this needs to work on day one. Add with one tap.

SIL-XT5MP28AU5MP IR Turret Network CameraPopular 5MP turret, indoor or outdoor
$199.99
SIL-XB5MP28AU5MP IR Fixed Bullet Network CameraPopular 5MP bullet for outdoor coverage
$199.99
SIL-B16M3POE1G30016 Ports 10/100/1000Mbps Gigabit Layer3 Managed PoE+ switch with 4 Ports 10G SFP+ Uplink,1USB, 1 Console, 6KV surge protection,300W,rack mount installationPoE power for more cameras
$220.00
HDMI Cable (15 Feet) Ultra HDMI 2.0V Support 4K 2160P, 1080P, 3D, Audio Return and Ethernet - 1 Pack 15'Connect a monitor
$8.99

Specifications

System

Main Processor	ARM Cortex A7 Processor
Operating System	Embedded LINUX

Video

Input	9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)

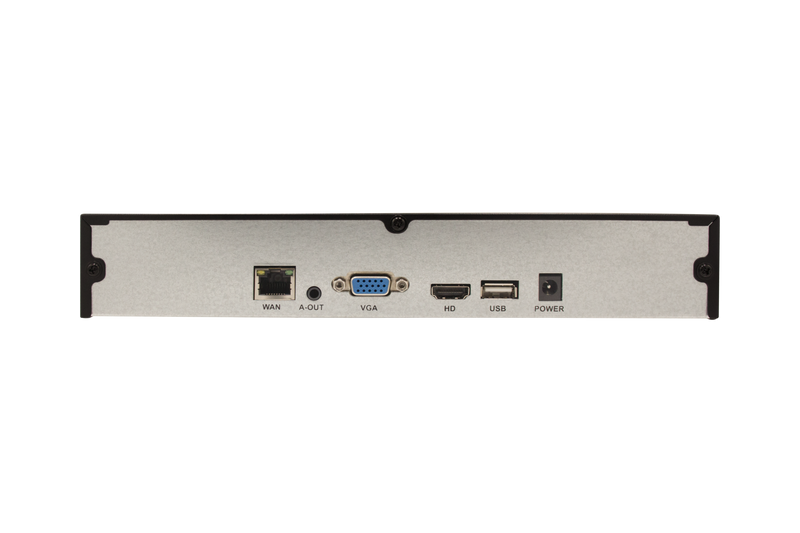

Output	1 VGA, 1 HDMI

Audio

Input	1 Port RCA
Output	1 Port RCA(Linear, 1kΩ)
Audio Bit Rate	64kbps
Audio Compression standard	G711u, G711a, ADPCM_DVI4
Intercom	support (two-way)

Alarm

Sensor Input	NO
Output	NO
Motion Detection	9 Channel, MD Zones: 396 (22 × 18)
Trigger Events	Recording, Email, FTP, Snapshot, Buzzer and Screen Tips

Display

HD Output1	1024x768/60Hz，1280x720/60Hz，1280x1024/60Hz，1920x1080/60Hz，4K(3840x2160)/30Hz
HD Output2	/
VGA Resolution	1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split	9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom	YES
OSD	Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording

Video Compression	H265/H264/H265+/H264+
PAL	4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC	4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp,
Record Mode	Manual\Timer\Motion Detection\Smart Event

Playback & Backup

Local Sync Playback	1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,
Decode Capability	4CH 1080P(1920x1080)@30fps
Remote Sync Playback	YES
Search Mode	ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback Functions	Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup Mode	USB Device/Network

Network

Interface	1 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth	80MB
Network Functions	TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Version	onvif S,onvif T
Web Browser	Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software	Support Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support	Yes
Smart Phone	iPhone, iPad, Android, Android Pad
POE	/
WIFI UI	/

Storage

Interface Type	1 SATA Hard Disk Interface (3.5" SATA)
Capacity	Up to 8TB capacity
eSATA	/

General

USB Interface	2 USB 2.0 Interfaces
RS485	/
Power Supply	DC12V 2A
Working Environment	-10~55℃/10~90%
Dimension(W×D×H)	26021543(mm)
Weight	2kg(without HDD)

Full description

System
Main Processor: ARM Cortex A7 Processor
Operating System: Embedded LINUX

Video
Input: 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output: 1 VGA, 1 HDMI

Audio
Input: 1 Port RCA
Output :1 Port RCA(Linear, 1kΩ)
Audio Bit Rate: 64kbps
Audio Compression standard: G711u, G711a, ADPCM_DVI4
Intercom: support (two-way)

Alarm
Sensor Input : NO
Output : NO
Motion Detection: 9 Channel, MD Zones: 396 (22 × 18)
Trigger Events : Recording, Email, FTP, Snapshot, Buzzer and Screen Tips

Display
HD Output1: 1024x768/60Hz，1280x720/60Hz，1280x1024/60Hz，1920x1080/60Hz，4K(3840x2160)/30Hz
HD Output2 : /
VGA Resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split : 9CHxD1/8CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k
Digital Zoom: YES
OSD: Camera Title, Time, Recording, Motion Detection, Event Alarm

Recording
Video Compression: H265/H264/H265+/H264+
Resolution :
4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),
1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record Rate :
PAL :4K@8x25fps,5MP@9×25fp,4MP@9x25fp,3MP@9×25fp,1080P@9×25fp, 960P@9×25fp,720P@9×25fp, D1@9×25fp
NTSC: 4K@8x30fps,5MP@9×30fp,4MP@9×30fp,3MP@9×30fp,1080P@9×30fp, 960P@9×30fp, 720P@9×30fp,
D1@9×30fp
Record Mode : Manual\Timer\Motion Detection\Smart Event

Playback & Backup
Local Sync Playback : 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps,
4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
Decode Capability : 4CH 1080P(1920x1080)@30fps
Remote Sync Playback : YES
Search Mode : ALL, Channel, Manual, Time, Date, Motion Detection,Event Alarm,Tag search
Playback Functions : Play, Pause, Stop, Rewind, Fast play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom,tag,clip
Backup Mode : USB Device/Network

Network
Interface : 1 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth : 80MB
Network Functions : TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Version: onvif S,onvif T
Web Browser: Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software: Support Windows 7/ Windows 8/Windows 10/MAC OS
Cloud Support: Yes
Smart Phone: iPhone, iPad, Android, Android Pad
POE: /
WIFI UI: /

Storage
Interface Type: 1 SATA Hard Disk Interface (3.5" SATA)
Capacity: Up to 8TB capacity
eSATA: /

General
Language:
Traditional Chinese, Simplified Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian,
German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese,Janpanese
USB Interface: 2 USB 2.0 Interfaces
RS485: /
Power Supply: DC12V 2A
Working Environment: -10~55℃/10~90%
Dimension(W×D×H): 260*215*43(mm)
Weight: 2kg(without HDD)

Download the Silarius IP Tool and Scanner, viewing software, manuals and firmware from the Silarius Download Center.
